Unit 1.5: Casting and Range of Variables

Casting Operators

The casting operators (int) and (double) are used to explicitly convert between double and int values. This is required when converting from a larger data type to a smaller one, as there is a potential loss of information.

Task: Casting a double value to an int.

double myDouble = 9.78;
// Explicit cast is required to convert double to int
int myInt = (int) myDouble;

Truncation

Casting a double to an int truncates the value, meaning the decimal part is simply cut off. It does not round.

Task: Observing truncation when casting.

double value = 9.999;
int truncatedValue = (int) value; // truncatedValue is 9

Widening Conversion

When assigning a value from a "smaller" data type to a "larger" one (like int to double), Java performs an automatic widening conversion. No explicit cast is needed.

Task: Assigning an int to a double variable.

int myInt = 10;
double myDouble = myInt; // myDouble is now 10.0. No cast needed.

Casting in Expressions

Explicit casting is often used in arithmetic expressions to ensure a floating-point result when dividing two integers. This prevents integer division.

Task: Using a cast to prevent integer division.

int total = 10;
int count = 4;
double average = (double) total / count; // average is 2.5
// Without the cast, 10 / 4 would be 2 (integer division)

Rounding a Double

To round a positive double to the nearest integer, add 0.5 before casting to an int. For negative numbers, subtract 0.5.

Task: Rounding positive and negative doubles to the nearest integer.

double num = 2.7;
int roundedNum = (int) (num + 0.5); // roundedNum is 3

double negNum = -2.7;
int roundedNeg = (int) (negNum - 0.5); // roundedNeg is -3

Integer Constants

The Integer class provides constants for the maximum and minimum values an int can store.

• Integer.MAX_VALUE: The largest possible int value (2,147,483,647).
• Integer.MIN_VALUE: The smallest possible int value (-2,147,483,648).

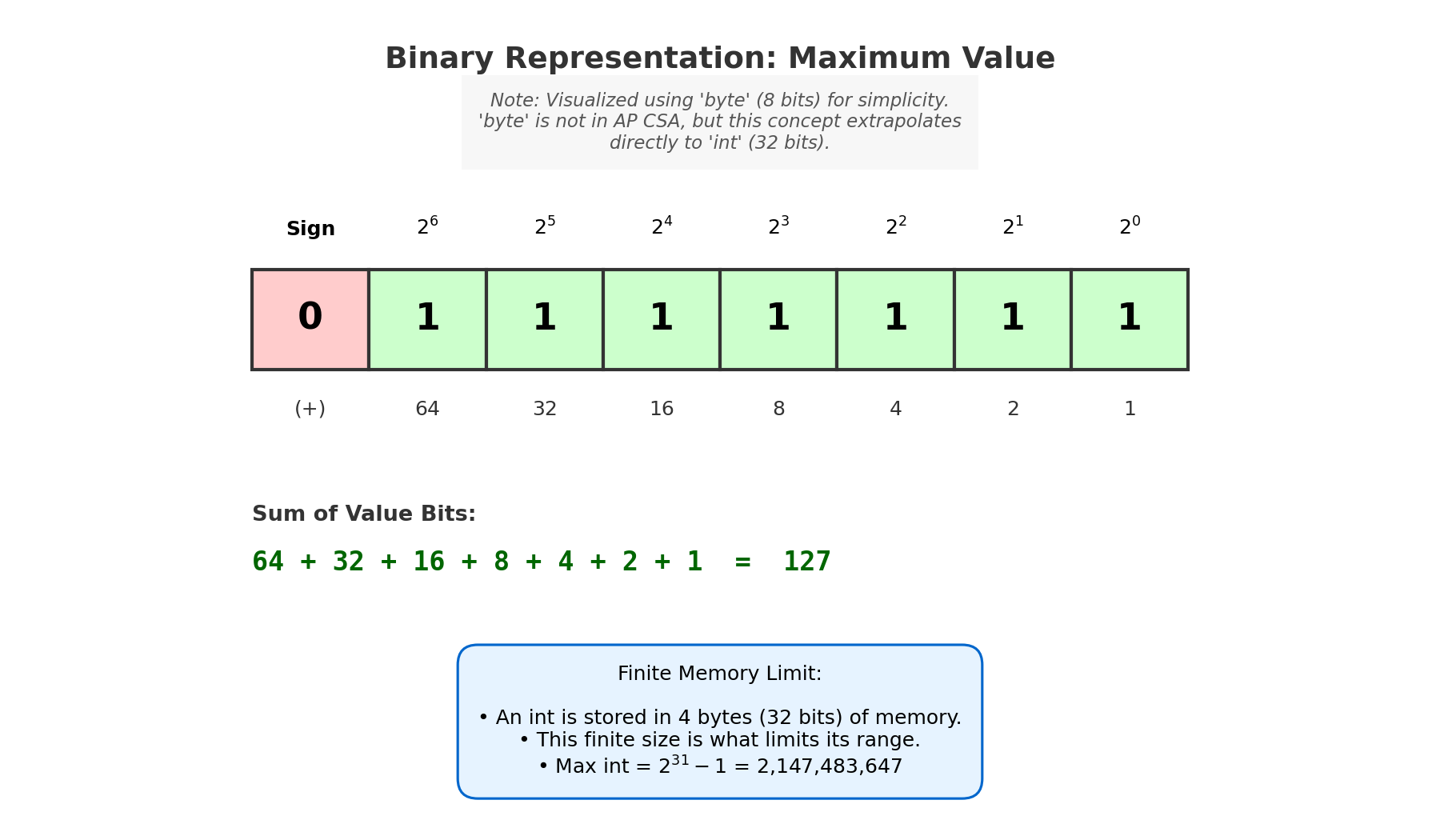

Finite Memory for Integers

An int is stored in 4 bytes (32 bits) of memory. This finite size is what limits its range.

How the math works: Just as shown in the diagram for a byte (8 bits), the maximum value is determined by the number of bits available for the value (excluding the sign bit):

• Byte (8 bits): 1 sign bit + 7 value bits. Max = $2^7 - 1 = 127$.
• Int (32 bits): 1 sign bit + 31 value bits. Max = $2^{31} - 1 = 2,147,483,647$.

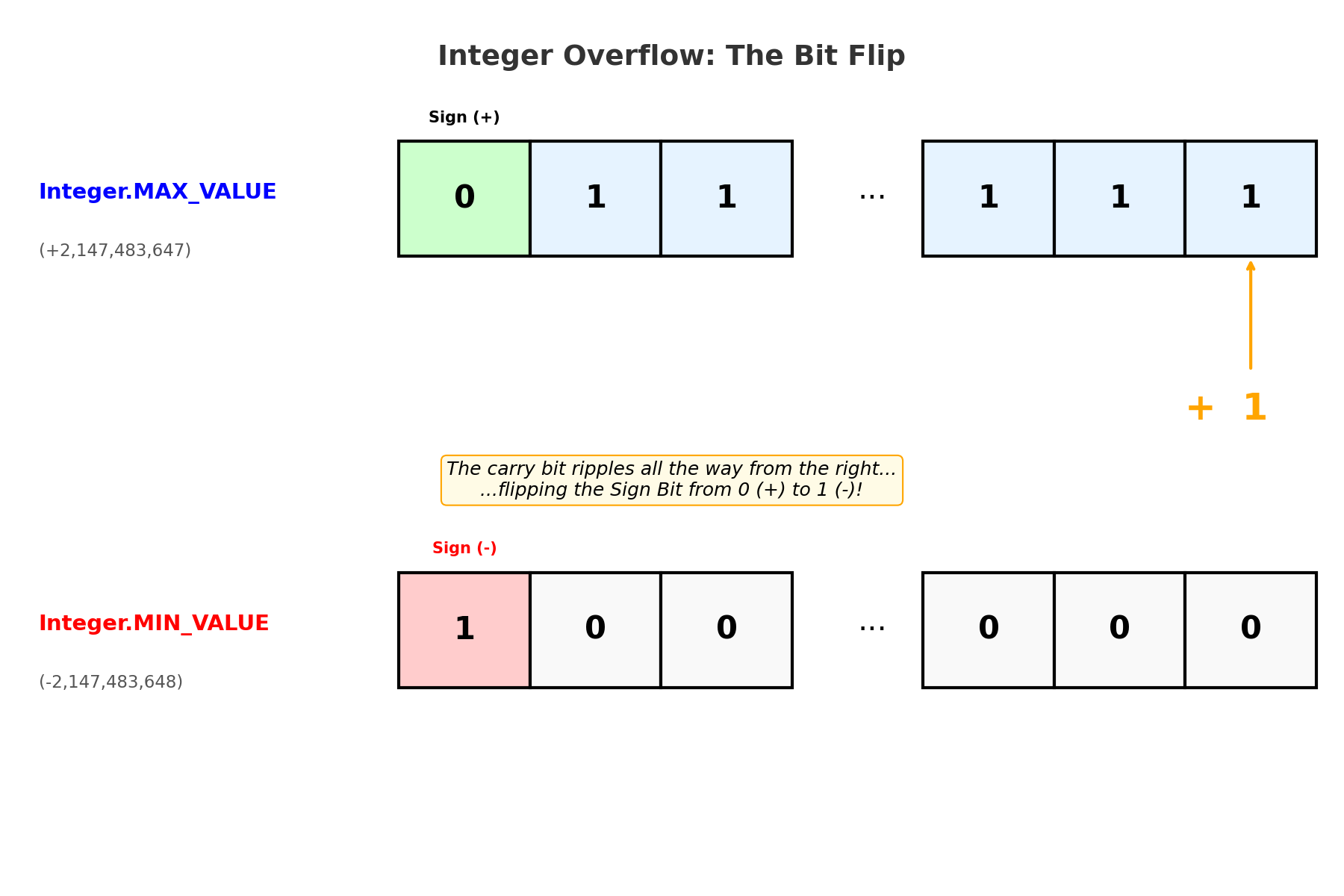

Integer Overflow

If an arithmetic operation produces a result outside the int range, an integer overflow occurs, and the value will "wrap around".

Task: Demonstrating integer overflow.

int x = Integer.MAX_VALUE;
x = x + 1; // Overflow
System.out.println(x); // Prints Integer.MIN_VALUE

How it works in Binary: When you add 1 to a sequence of 1s in binary, the value "carries over" to the next column, much like 9 + 1 becomes 10 in decimal.

  0111 1111  (MAX_VALUE: 127 in a byte)
+ 0000 0001  (Add 1)
-----------
  1000 0000  (The 1s ripple all the way to the sign bit!)

This flips the sign bit from 0 (positive) to 1 (negative).

Two's Complement

Java uses Two's Complement to represent integers. To find the binary representation of a negative number, follow these two steps:

1. Flip the bits: Change all 0s to 1s and 1s to 0s.
2. Add 1.

Example: Converting 1 to -1 (8-bit simplified)

• Start with 1: 0000 0001
• Flip bits: 1111 1110
• Add 1: 1111 1111 (This is -1)

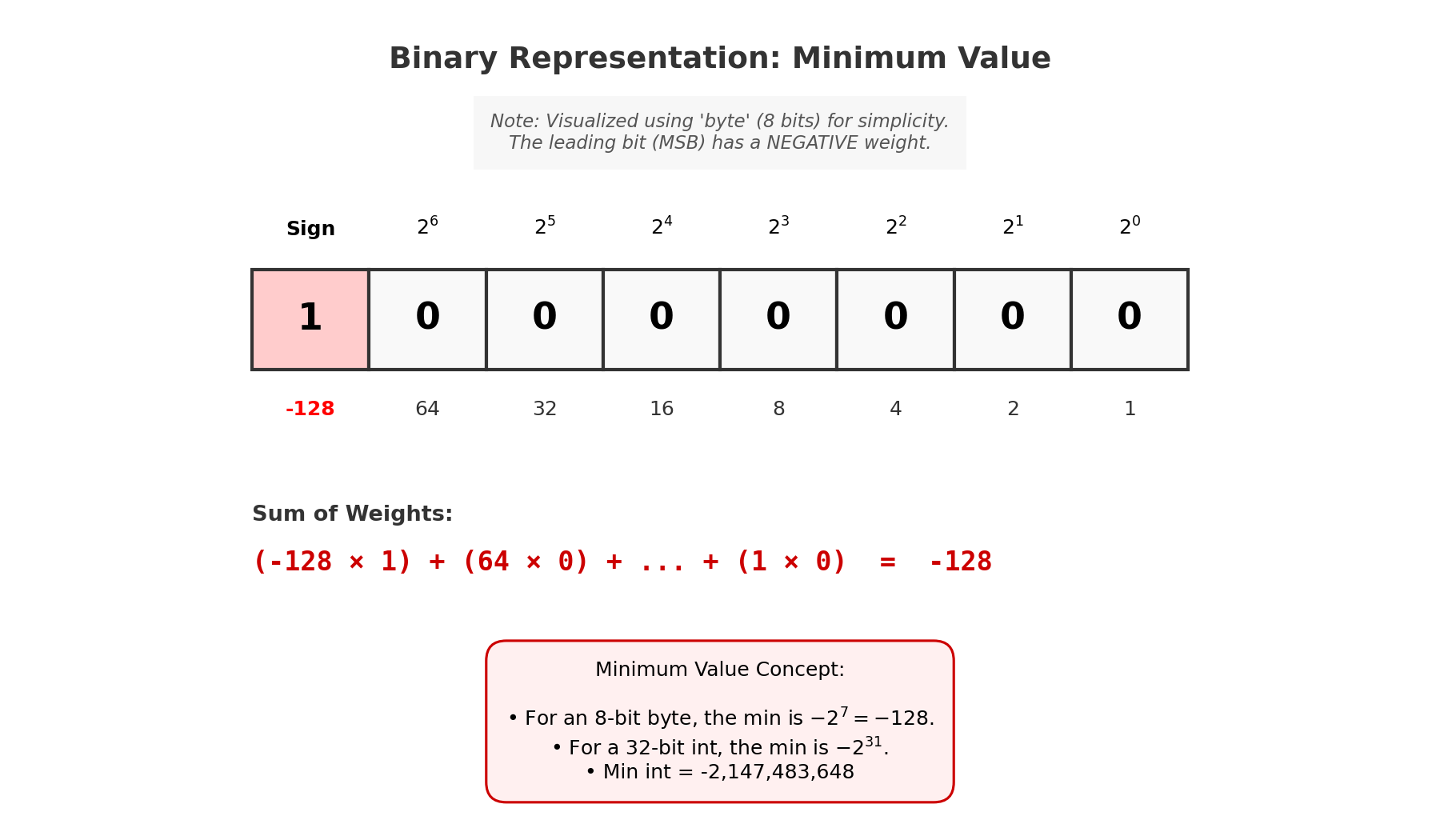

The Asymmetry (Range) Because 0 is represented as 0000 0000 (which takes up one of the "positive-looking" slots starting with 0), there is one more negative number than positive.

• Max Positive: 0111 1111 (127)
• Most Negative: 1000 0000 (-128)
• There is no +128 in an 8-bit signed integer.

Why is 1000 0000 equal to -128? You can see this by adding 1 to the maximum positive value (127):

  0111 1111  (127)
+ 0000 0001  (1)
-----------
  1000 0000  (-128)

In Two's Complement, the leading bit has a negative weight. For an 8-bit number, the leading bit is the -128's place.

• 1000 0000 = $-128$
• 1000 0001 = $-128 + 1 = -127$
• 1111 1111 = $-128 + 64 + 32 + 16 + 8 + 4 + 2 + 1 = -1$

Round-off Error

Computers allot a specified amount of memory to store data based on the data type. However, the root cause of these errors is how computers store numbers: they use binary (base-2).

Just as 1/3 cannot be written exactly in decimal (it becomes 0.3333...), numbers like 0.1 and 0.2 cannot be written exactly in binary—they become repeating binary fractions.

• Because the computer has finite memory (64 bits for a double), it must chop off this repeating pattern at some point, storing an approximation.
• When you add two approximations (0.1 + 0.2), the tiny errors compound, resulting in a value slightly larger than 0.3.

To avoid these errors in precise calculations (like money), use int values to count cents rather than double dollars.

Task: Observing round-off error with double values.

double price1 = 0.10;
double price2 = 0.20;
System.out.println(price1 + price2); // Prints 0.30000000000000004

Task: Avoiding round-off error using int for precise calculations.

int price1Cents = 10;
int price2Cents = 20;
int totalCents = price1Cents + price2Cents;
System.out.println(totalCents / 100.0); // Prints 0.3 (exactly)
