Spark SQL and DataFrames

While RDDs provide a powerful, low-level API, most modern Spark applications are built using Spark SQL and its primary abstraction, the DataFrame. Spark SQL is a module for structured data processing that brings the power of SQL and relational databases to Spark.

What is a DataFrame?

A DataFrame is a distributed collection of data organized into named columns. Conceptually, it is equivalent to a table in a relational database or a data frame in R/Python (like pandas), but with two key differences:

1. Distributed: The data is partitioned and distributed across the worker nodes of a cluster.
2. Optimized: Operations on DataFrames are automatically optimized by Spark's Catalyst Optimizer, which creates highly efficient physical execution plans. This often makes DataFrame code significantly faster than equivalent RDD code.

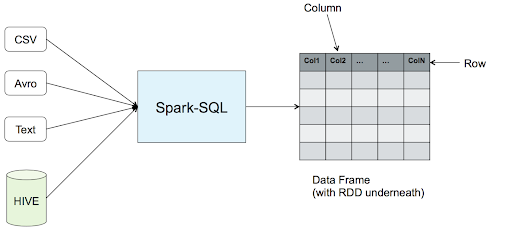

DataFrames can be constructed from a wide range of sources, including structured data files (JSON, CSV, Parquet), tables in Hive, external databases, or existing RDDs.

Working with DataFrames

You can interact with DataFrames in two primary ways: using the DataFrame API (a fluent, programmatic style) or by registering the DataFrame as a temporary view and using standard SQL queries.

A Simple Example

Here’s a quick look at how you might read a JSON file and perform some basic analysis using the DataFrame API in PySpark.

from pyspark.sql import SparkSession

# 1. Create a SparkSession
# This is the entry point for any Spark SQL functionality
spark = (
    SparkSession.builder.appName("My Spark SQL Example")
    .master("local[*]")
    .getOrCreate()
)

# 2. Read data into a DataFrame
# Spark can infer the schema from the JSON file
df = spark.read.json("path/to/your/customers.json")

# 3. Perform operations (Transformations)
# Select specific columns
names_and_ages = df.select("name", "age")

# Filter the data
adults = df.filter(df.age >= 21)

# Group by a column and aggregate
avg_age_by_city = df.groupBy("city").avg("age")

# 4. Trigger a computation (Action)
# The .show() action displays the first 20 rows of the resulting DataFrame
print("Adult Customers:")
adults.show()

print("Average Age by City:")
avg_age_by_city.show()

# Stop the SparkSession
spark.stop()

DataFrame API Cheat Sheet

Here are some of the most common functions in the PySpark DataFrame API. Let df be a DataFrame object.

Creating and Reading Data

Inspecting Data

Selecting and Filtering

Manipulating Columns and Rows

Handling Missing Data

Grouping and Aggregating

Grouping data is a two-step process. First, you create a GroupedData object using groupBy(). Then, you apply an aggregation function to that object.

grouped_data = df.groupBy("city")

Analyzing with Window Functions

While groupBy aggregates data into a single row per group, Window Functions compute a result for each row based on a "window" of related input rows. This is useful for tasks like calculating running totals, moving averages, or ranking items within a group.

The process involves three main steps:

1. Define a Window Specification: This defines how the rows are partitioned and ordered. You use Window.partitionBy() to group data and Window.orderBy() to sort it within each group.
2. Select a Window Function: Choose a function to apply over the window, such as rank(), row_number(), lag(), or aggregate functions like sum().
3. Apply the Function: Use the .over(window_spec) clause on the selected function.

Example: Find the Top 2 Highest-Paid Employees in Each Department

Imagine you have a DataFrame of employees and want to find the top earners in each department without losing the individual employee records.

from pyspark.sql import SparkSession, Window
from pyspark.sql.functions import col, rank

# Sample data
data = [
    ("James", "Sales", 3000),
    ("Michael", "Sales", 4600),
    ("Robert", "Sales", 4100),
    ("Maria", "Finance", 3000),
    ("James", "Finance", 3000),
    ("Scott", "Finance", 3300),
    ("Jen", "Finance", 3900),
    ("Jeff", "Marketing", 3000),
    ("Kumar", "Marketing", 2000),
    ("Saif", "Sales", 4100),
]
columns = ["employee_name", "department", "salary"]
df = spark.createDataFrame(data, schema=columns)

# 1. Define the window spec
# Partition by department and order by salary in descending order
window_spec = Window.partitionBy("department").orderBy(col("salary").desc())

# 2. Apply the rank() function over the window
ranked_df = df.withColumn("rank", rank().over(window_spec))

# 3. Filter to find the top 2 employees in each department
top_earners_df = ranked_df.filter(col("rank") <= 2)

top_earners_df.show()
# +-------------+----------+------+----+
# |employee_name|department|salary|rank|
# +-------------+----------+------+----+
# |        Maria|   Finance|  3900|   1|
# |        Scott|   Finance|  3300|   2|
# |      Michael|     Sales|  4600|   1|
# |       Robert|     Sales|  4100|   2|
# |         Saif|     Sales|  4100|   2|
# |         Jeff| Marketing|  3000|   1|
# |        Kumar| Marketing|  2000|   2|
# +-------------+----------+------+----+

In this example, rank() is used, which assigns the same rank to rows with identical values in the orderBy column (e.g., Robert and Saif). If a unique ranking is needed, row_number() would be a better choice.

Why Not Use groupBy?

The key difference is that groupBy aggregates data, which means it collapses multiple rows into a single summary row. If we tried to solve the problem above with groupBy, we could find the maximum salary in each department (df.groupBy("department").max("salary")), but we would lose the information about which employee earns that salary.

A Window function, on the other hand, preserves the original rows. It calculates a value for each row based on the other rows in its "window" (or partition). This allows you to perform group-level calculations (like ranking) while keeping the detail of each individual record.

• Use groupBy when you need a single, aggregated result per group.
• Use a Window function when you need to compute a value for each row based on its group.

Other Utilities
